Bestway CSM API Toolkit

A Business Central AL extension that exposes read-only OData v4 API endpoints for service order data, fault reporting tables, and posted document lines. Built for the Bestway USA CSM (Customer Service Management) integration workflow and CMS FAQ Management automated test validation.

Overview

This extension publishes custom API pages under the bestway/csm/v1.0 API group. External systems (e.g., CSM platforms, reporting tools, automated test suites) can query service order data, fault reporting master tables, code relationships, and posted document lines.

All endpoints are read-only — POST, PATCH, and DELETE requests are rejected.

Prerequisites

• Business Central version 27.0 or later (application 27.0.0.0, runtime 16.0)
• BestwayUSA extension (publisher: Innovia Consulting, v27.0.0.0) — provides custom INVC-prefixed fields on Service Header, Service Line, Service Invoice Header, and Document Attachment tables
• VS Code with the AL Language extension (for development)

Object ID Allocation

Object ID	Type	Name	Source Table	Description
56101	Page	Service Order API	Service Header	Service order headers
56102	Page	Service Order Line API	Service Line	Service order lines (subpage)
56103	Page	Serv. Order Attachment API	Document Attachment	Document attachments (subpage)
56104	Codeunit	CSM API Helper	—	Extracted computed field logic for testability
56105	Page	Fault Area API	Fault Area (5915)	Fault area master data
56106	Page	Symptom Code API	Symptom Code (5916)	Symptom code master data
56107	Page	Fault Code API	Fault Code (5918)	Fault code master data
56108	Page	Resolution Code API	Resolution Code (5919)	Resolution code master data
56109	Page	Fault Resol. Relation API	Fault/Resol. Cod. Relationship (5920)	Code relationship mappings
56120	Page	FA Symptom Relation API	INVC FA Symptom Code Relation (50113)	Fault area/symptom code relationships
56121	Page	Posted Svc. Invoice Line API	Service Invoice Line (5993)	Posted service invoice lines
56122	Page	Posted Svc. Shipment Line API	Service Shipment Line (5991)	Posted service shipment lines
56123	Page	Posted Svc. Invoice Header API	Service Invoice Header (5992)	Posted service invoice headers

ID range 56100–56149 is reserved for this extension. Next available: 56124.

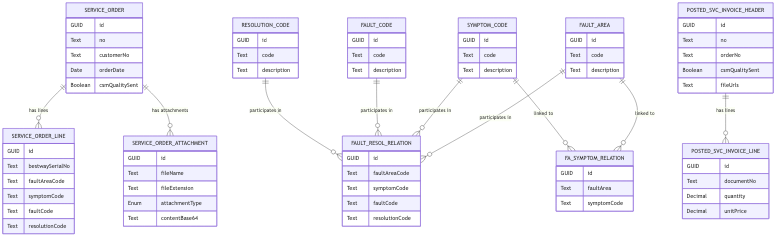

Data Model

API Reference

Base URL pattern:

https://api.businesscentral.dynamics.com/v2.0/{tenantId}/{environment}/api/bestway/csm/v1.0/companies({companyId})

Service Orders (Page 56101)

Endpoint: /serviceOrders Source Table: Service Header (filtered to Document Type = Order)

Field	Type	Description
id	GUID	SystemId
no	Text	Service order number
customerNo	Text	Customer number
orderDate	Date	Order date
postingDate	Date	Posting date
csmQualitySent	Boolean	Computed: true if any posted service invoice for this order has INVC CSM Quality Sent = true

Subpages (expandable via $expand):

• serviceOrderLines — linked by Document Type + Document No.
• serviceOrderAttachments — linked by No.

Service Order Lines (Page 56102)

Endpoint: /serviceOrders({id})/serviceOrderLines Source Table: Service Line

Field	Type	Description
id	GUID	SystemId
no	Text	Line No.
bestwaySerialNo	Text	INVC Bestway Serial No. from BestwayUSA extension
itemCategoryCode	Text	Item category code
faultAreaCode	Text	Fault area code
faultAreaDescription	Text	Looked up from Fault Area table
symptomCode	Text	Symptom code
symptomCodeDescription	Text	Looked up from Symptom Code table
faultCode	Text	Fault code
faultCodeDescription	Text	Looked up from Fault Code table
resolutionCode	Text	Resolution code
description	Text	Line description
description2	Text	Line description 2
quantity	Decimal	Quantity
serviceItemNo	Text	Service item number
itemNo	Text	Looked up from Service Item → Item No.
salesDate	Date	Looked up from Service Item → Sales Date

Service Order Attachments (Page 56103)

Endpoint: /serviceOrders({id})/serviceOrderAttachments Source Table: Document Attachment (filtered to Table ID = 5900, Document Type = Order)

Field	Type	Description
id	GUID	SystemId
documentNo	Text	Service order number
lineNo	Integer	Attachment line number
fileName	Text	File name
fileExtension	Text	File extension (e.g., .jpg)
fileType	Enum	File type (e.g., Image, PDF)
attachmentType	Enum	INVC Document Attachment Type from BestwayUSA extension
contentBase64	Text	Base64-encoded file content (streamed via Temp Blob + Base64 Convert)

Fault Areas (Page 56105)

Endpoint: /faultAreas Source Table: Fault Area (5915)

Field	Type	Description
id	GUID	SystemId
code	Text	Fault area code
description	Text	Fault area description

Symptom Codes (Page 56106)

Endpoint: /symptomCodes Source Table: Symptom Code (5916)

Field	Type	Description
id	GUID	SystemId
code	Text	Symptom code
description	Text	Symptom code description

Fault Codes (Page 56107)

Endpoint: /faultCodes Source Table: Fault Code (5918)

Field	Type	Description
id	GUID	SystemId
code	Text	Fault code
description	Text	Fault code description

Resolution Codes (Page 56108)

Endpoint: /resolutionCodes Source Table: Resolution Code (5919)

Field	Type	Description
id	GUID	SystemId
code	Text	Resolution code
description	Text	Resolution code description

Fault/Resolution Relations (Page 56109)

Endpoint: /faultResolutionRelations Source Table: Fault/Resol. Cod. Relationship (5920)

Field	Type	Description
id	GUID	SystemId
faultAreaCode	Text	Fault area code
symptomCode	Text	Symptom code
faultCode	Text	Fault code
resolutionCode	Text	Resolution code
serviceItemGroupCode	Text	Service item group code
description	Text	Relationship description
occurrences	Integer	Usage count
createdManually	Boolean	Whether created manually vs. auto-generated

Fault Area/Symptom Relations (Page 56120)

Endpoint: /faultAreaSymptomRelations Source Table: INVC FA Symptom Code Relation (50113)

Field	Type	Description
id	GUID	SystemId
faultArea	Text	Fault area code
symptomCode	Text	Symptom code

Posted Service Invoice Headers (Page 56123)

Endpoint: /postedServiceInvoiceHeaders Source Table: Service Invoice Header (5992)

Field	Type	Description
id	GUID	SystemId
no	Text	Posted invoice document number
customerNo	Text	Customer number
orderNo	Text	Original service order number
orderDate	Date	Order date
postingDate	Date	Posting date
locationCode	Text	Location code
csmQualitySent	Boolean	INVC CSM Quality Sent flag from BestwayUSA extension
fileUrls	Text	Computed: JSON array of Link-type Record Link URLs attached to this invoice. Notes and other Record Link types are excluded. Format: [{"url":"https://...","type":"1"}]

Subpage (expandable via $expand):

• postedServiceInvoiceLines — linked by Document No.

Posted Service Invoice Lines (Page 56121)

Endpoint: /postedServiceInvoiceLines Source Table: Service Invoice Line (5993)

Field	Type	Description
id	GUID	SystemId
documentNo	Text	Posted invoice document number
lineNo	Integer	Line number
type	Enum	Line type (Item, Resource, Cost, G/L Account)
no	Text	Item/resource/account number
description	Text	Line description
description2	Text	Line description 2
quantity	Decimal	Quantity
unitPrice	Decimal	Unit price
lineAmount	Decimal	Line amount
customerNo	Text	Customer number
orderNo	Text	Original service order number
postingDate	Date	Posting date
serviceItemNo	Text	Service item number
serviceItemSerialNo	Text	Service item serial number
itemCategoryCode	Text	Item category code
faultAreaCode	Text	Fault area code
symptomCode	Text	Symptom code
faultCode	Text	Fault code
resolutionCode	Text	Resolution code
faultReasonCode	Text	Fault reason code
bestwaySerialNo	Text	INVC Bestway Serial No.
faultCodeDescription	Text	INVC Fault Code Description
symptomCodeDescription	Text	INVC Symptom Code Description
faultAreaDescription	Text	INVC Fault Area Description
itemNo	Text	Computed: Item No. looked up from Service Item record
salesDate	Date	Computed: Sales Date looked up from Service Item record

Posted Service Shipment Lines (Page 56122)

Endpoint: /postedServiceShipmentLines Source Table: Service Shipment Line (5991)

Field	Type	Description
id	GUID	SystemId
documentNo	Text	Posted shipment document number
lineNo	Integer	Line number
type	Enum	Line type
no	Text	Item/resource/account number
description	Text	Line description
description2	Text	Line description 2
quantity	Decimal	Quantity
customerNo	Text	Customer number
orderNo	Text	Original service order number
postingDate	Date	Posting date
serviceItemNo	Text	Service item number
serviceItemSerialNo	Text	Service item serial number
itemCategoryCode	Text	Item category code
faultAreaCode	Text	Fault area code
symptomCode	Text	Symptom code
faultCode	Text	Fault code
resolutionCode	Text	Resolution code
faultReasonCode	Text	Fault reason code

OData Query Examples

All examples use the service orders endpoint. Replace {baseUrl} with your base URL.

Filter by order number:

GET {baseUrl}/serviceOrders?$filter=no eq 'SO-001234'

Filter by date range:

GET {baseUrl}/serviceOrders?$filter=orderDate ge 2024-01-01 and orderDate le 2024-12-31

Filter by customer:

GET {baseUrl}/serviceOrders?$filter=customerNo eq 'C00010'

Filter by CSM quality sent status:

GET {baseUrl}/serviceOrders?$filter=csmQualitySent eq false

Expand lines and attachments:

GET {baseUrl}/serviceOrders?$expand=serviceOrderLines,serviceOrderAttachments

Sort by order date (newest first):

GET {baseUrl}/serviceOrders?$orderby=orderDate desc

Get count with results:

GET {baseUrl}/serviceOrders?$count=true

Limit results:

GET {baseUrl}/serviceOrders?$top=10

Combined (filter + sort + count + expand):

GET {baseUrl}/serviceOrders?$filter=orderDate ge 2024-01-01&$orderby=orderDate desc&$count=true&$expand=serviceOrderLines,serviceOrderAttachments

Filter attachment lines by type:

GET {baseUrl}/serviceOrders({id})/serviceOrderAttachments?$filter=attachmentType eq 'DamagePhoto'

Postman Guide

A pre-built Postman collection is included at BestwayCSM.postman_collection.json.

Import the collection

1. Open Postman and click Import.
2. Select BestwayCSM.postman_collection.json.

Configure variables

Edit the collection variables (click the collection name → Variables tab):

Variable	Description
tenantId	Your Azure AD tenant ID (GUID)
companyId	Business Central company ID (GUID)
clientId	Azure AD app registration client ID
clientSecret	Azure AD app registration client secret
serviceOrderId	A service order SystemId GUID (for single-record requests)
serviceOrderNo	A service order number (for filter-based requests)

Configure authentication

The collection uses OAuth2 client credentials at the collection level. The token URL is:

https://login.microsoftonline.com/{tenantId}/oauth2/v2.0/token

With scope: https://api.businesscentral.dynamics.com/.default

To get a token: click the collection → Authorization tab → Get New Access Token → Use Token.

Run requests

The collection includes folders for:

• Service Orders — all orders, single order by ID, filter by date/customer/quality-sent, sorting, pagination, expand lines/attachments
• Service Order Lines — lines for a specific order, filter by fault area, count
• Service Order Attachments — attachments for a specific order, filter by file type/extension/attachment type, count

Authentication

The API uses standard Business Central OData authentication. For external integrations, configure an Azure AD app registration with:

• API permissions: Dynamics 365 Business Central → API.ReadWrite.All (or Financials.ReadWrite.All)
• Client secret for server-to-server authentication
• A BC user mapped to the app registration with appropriate Service Management permissions

Alternatively, use user-delegated OAuth2 flow for interactive/testing scenarios (e.g., Postman authorization code flow).

Development

Folder structure

AL source files are organized by object type:

bc-csm-api/
├── Codeunit/     Helper codeunits (CsmApiHelper)
├── Page/         API page objects (all 11 endpoints)
└── docs/         Changelog and change documents

Files follow the {Name}.{ObjectType}.al naming convention (e.g., ServiceOrderAPI.Page.al, CsmApiHelper.Codeunit.al).

Download symbols

Run AL: Download Symbols in VS Code to pull base application and BestwayUSA dependency symbols into .alpackages/.

Publish to sandbox

Press F5 or run AL: Publish to deploy to the configured sandbox environment (see .vscode/launch.json).

Package

Run AL: Package to build the .app file for deployment to other environments.

Testing

Automated tests live in a separate extension at ../bc-csm-api-test/.

Test Object Allocation

Object ID	Type	Name	Tests
56110	Codeunit	CSM API Test Library	Test data helpers
56111	Codeunit	Service Order API Test	4 unit tests
56112	Codeunit	Service Order Line API Test	11 unit tests
56113	Codeunit	Serv. Order Attach. API Test	3 unit tests
56114	Codeunit	Serv. Order API Func. Test	2 functional tests
56115	Codeunit	Posted Inv. Header API Test	6 unit tests

Test ID range 56110–56119 is reserved for the test extension. Next available: 56116.

Test categories

Unit tests (56111–56113): Exercise the CSM API Helper codeunit in isolation — computed field lookups, Base64 encoding, edge cases.

Functional tests (56114): Open the actual API pages via TestPage and verify end-to-end behavior:

• Get Service Order by ID — creates a full order with line + attachment + lookup master data, navigates to the record, asserts all fields including computed values (csmQualitySent, itemNo, faultAreaDescription, etc.) and subpage content (lines, attachments with base64).
• Get Service Orders (top 20 with expand) — creates 25 orders each with a line and attachment, iterates up to 20 records, verifies each has accessible line and attachment subpages.

Running tests

1. Publish the main extension (bc-csm-api) to the sandbox.
2. Open bc-csm-api-test in VS Code, run AL: Download Symbols, then AL: Publish.
3. Navigate to the Test Tool page (130401) in the sandbox.
4. Add the test codeunits (56111–56114) and run all tests.

All tests use BC's auto-rollback transaction model — inserted test data rolls back after each test.
