PO Email Notification

Extension ID: 6E56CA7D-E6F5-4AAC-8F2E-BEA9F0E5D49A Publisher: Sataware Technologies Current Version: 1.2.0.0 BC Compatibility: Platform 25.0+ / Application 25.0+

---

Purpose

Sends automated email notifications to the Supply Chain team at key milestones in the Purchase Order lifecycle:

Trigger	Email Sent	Subject
PO released	"PO Created" — itemized list of lines	PO {No.} Created
Warehouse Receipt created	"PO Shipped" — lines on the receipt	PO {No.} Shipped
Warehouse Receipt posted (or PO received directly)	"PO Arrived" — posted receipt lines	PO {No.} Arrived

Recipients are configured per-PO using a semicolon-separated list in the Send E-mail To field on the Purchase Order header. Email addresses are looked up from Entra ID via the Microsoft Graph API.

---

Architecture

Objects

Object	ID	Type	Purpose
AzureAdMailLookup	80100	Codeunit	Authenticates with Microsoft Graph API via OAuth2 client credentials and queries Entra ID users by display name or email.
Temp Email Results	80100	Table (Temporary)	In-memory result buffer for Graph API user search results. Never written to the database.
PO Email Setup	80101	Table	Singleton setup record storing the Graph API tenant ID, client ID, and a flag indicating whether a client secret has been saved.
Purch. Order Ext	80101	Page Extension	Adds the Send E-mail To field and email address lookup action to the Purchase Order page.
PO Email Setup	80101	Page	Administration page for configuring Graph API credentials. Accessible via Search → PO Email Setup.
PO Email Helper	80103	Codeunit	Builds email HTML and manages the enqueue lifecycle. All email sending goes through Email.Enqueue (non-blocking) so that email failures never roll back a posting transaction.
PO Email Subscribers	80104	Codeunit	Event subscribers that connect BC document lifecycle events to the email helper.
PoEmailPermissionSet	80100	Permission Set	Required permission set for users who need access to the setup page and email lookup.

Email Delivery

All emails are sent via Email.Enqueue, not Email.Send. This means:

• Email delivery failures do not block or roll back Purchase Order or Warehouse Receipt operations.
• Failed enqueue attempts are logged to Application Insights with event IDs ending in .fail (e.g., wr.shipped.enqueue.fail).
• An administrator monitoring App Insights can detect delivery failures without user-facing disruption.

The BC Email Scenario "Custom Purchase Emails" must be mapped to an active email account. If the scenario has no mapped account, enqueues will fail silently in production — monitor App Insights for .enqueue.fail events.

---

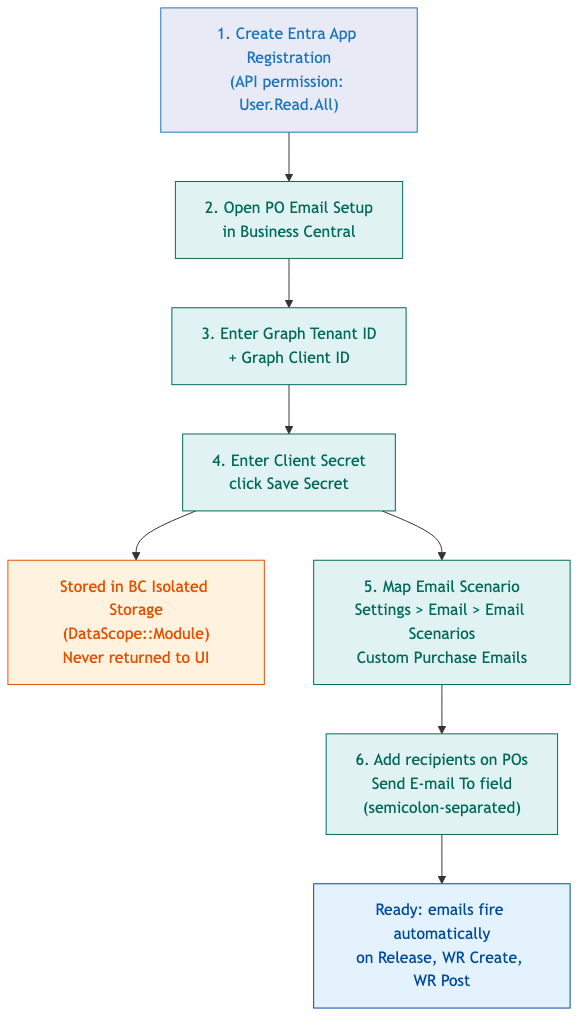

Setup

Prerequisites

1. An Azure AD (Entra ID) app registration with:
   • API permission: User.Read.All (Application type)
   • A client secret configured
2. The extension published to the BC environment
3. The "Custom Purchase Emails" email scenario mapped to an active email account in BC (Settings → Email → Email Scenarios)
4. The PoEmailPermissionSet permission set assigned to all users who will use the email lookup or access the setup page

Step 1: Configure Graph API Credentials

1. Navigate to Search → PO Email Setup in BC.
2. Enter the Graph Tenant ID (your Azure AD tenant ID, e.g., 823af2fd-...).
3. Enter the Graph Client ID (the Application (client) ID from the app registration).
4. Enter the Client Secret in the masked field.
5. Click Save Secret to persist the secret to Isolated Storage.
   • The secret is stored in BC's Isolated Storage (DataScope::Module) and is never returned to the UI after saving.
   • The Client Secret Stored indicator will show true once saved.
6. To rotate a secret: enter the new value and click Save Secret again. The old value is overwritten.
7. To remove a secret: click Clear Secret.

Step 2: Configure Email Scenario

1. Go to Settings → Email → Email Scenarios.
2. Locate Custom Purchase Emails and assign it to the outbound email account that should send PO notifications.

Step 3: Set Recipients on a Purchase Order

1. Open a Purchase Order.
2. In the Send E-mail To field (in the General tab), enter one or more email addresses separated by semicolons (;).
3. Use the Lookup action to search Entra ID users by name or email and select from the results. Multiple selections append to the field with semicolons.

---

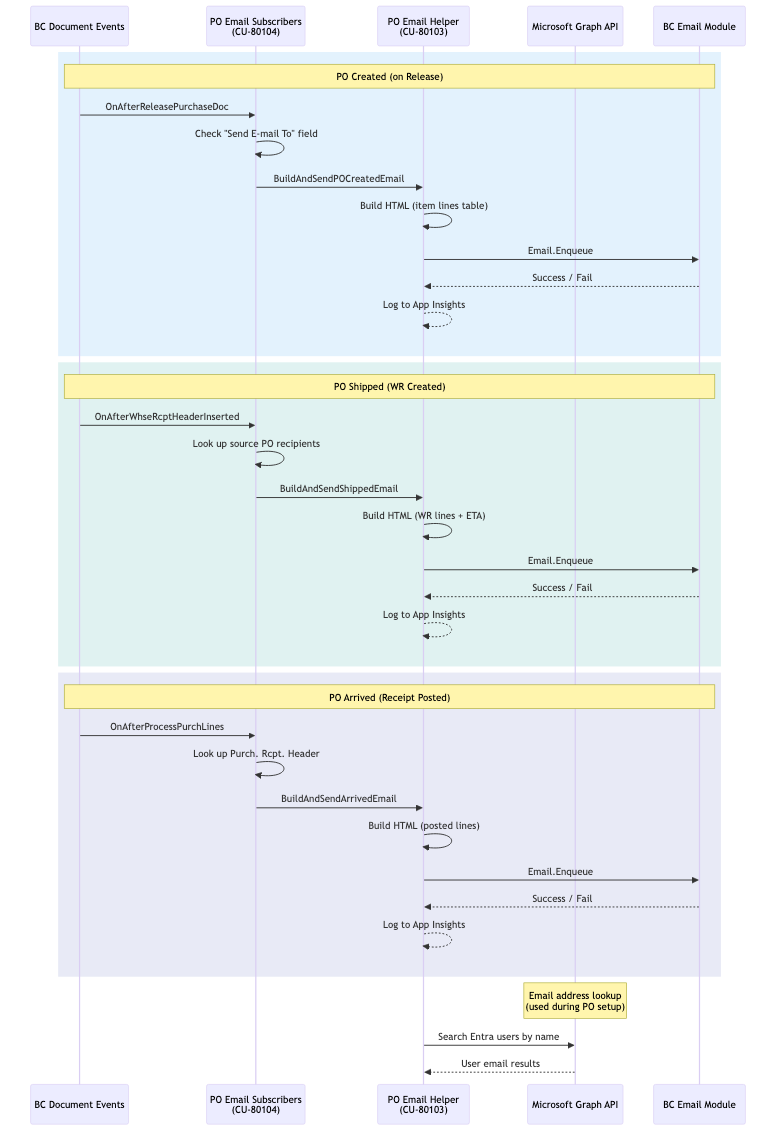

How Notifications Work

PO Created (on Release)

Fires when a Purchase Order is released (OnAfterReleasePurchaseDoc). The email lists all item lines on the PO at the time of release. No email is sent if "Send E-mail To" is blank.

PO Shipped (on WR Created)

Fires when a Warehouse Receipt is registered (OnAfterWhseRcptHeaderInserted). The email lists only the item lines on the warehouse receipt that are sourced from the PO. No email is sent if the PO has no recipients or if no matching WR lines are found.

PO Arrived (on Receipt Posted)

Fires on OnAfterProcessPurchLines in the purchase posting codeunit (Codeunit 90). This subscriber fires on any posting that produces a Purch. Rcpt. Header, including:

• Warehouse Receipt posting
• Direct PO posting with the Receive option

This is intentional — the "Arrived" notification applies to all receiving scenarios, not only the warehouse flow. Invoice-only postings (which produce no Purch. Rcpt. Header) are filtered out automatically.

---

Telemetry

All significant events are logged to Application Insights using the extension-level connection string in app.json.

Legend: Green = Normal | Amber = Warning | Red = Error

Event ID	When	Severity	Key Dimensions
setup.missing	PO Email Setup record not found — extension unconfigured	Error	—
setup.clientid.missing	Graph Client ID is blank in setup	Warning	—
setup.tenantid.missing	Graph Tenant ID is blank in setup	Warning	—
setup.secret.missing	Client secret not saved in setup	Warning	—
graph.token.connfail	Cannot reach Microsoft identity platform	Error	Tenant
graph.token.httpfail	Token request returned HTTP error	Error	StatusCode
graph.search.connfail	Cannot reach Graph API	Error	Filter
graph.search.httpfail	Graph API returned HTTP error	Error	StatusCode, DurationMs
graph.search.ok	Email search completed	Normal	Count, DurationMs
graph.search.noresults	Search returned zero users	Warning	Filter
wr.shipped.start	Shipped notification started	Normal	WR, PO
wr.shipped.eta.ok	ETA resolved	Normal	—
wr.shipped.eta.miss	No ETA found	Warning	—
wr.shipped.norecip	No recipients on PO	Warning	PO
wr.shipped.lines.miss	No matching WR lines	Warning	—
wr.shipped.sent	Shipped email enqueued	Normal	WR, PO, RecipientCount
wr.shipped.enqueue.fail	Failed to enqueue Shipped email	Error	WR, PO
arrived.start	Arrived notification started	Normal	PO
arrived.count	Receipt line count logged	Normal	PostedWR, PO
arrived.norecip	No recipients resolved	Warning	PO
arrived.nolines	Posted receipt has no item lines	Warning	PostedWR, PO
arrived.sent	Arrived email enqueued	Normal	PostedWR, PO, RecipientCount
arrived.enqueue.fail	Failed to enqueue Arrived email	Error	PO
po.created.start	PO Created notification started	Normal	PO
po.created.norecip	No recipients on PO	Warning	PO
po.created.nolines	PO has no item lines	Warning	PO
po.created.sent	PO Created email enqueued	Normal	PO, RecipientCount, LineCount
po.created.enqueue.fail	Failed to enqueue PO Created email	Error	PO

Query for recent enqueue failures:

traces
| where timestamp > ago(7d)
| where message has 'enqueue.fail'
| project timestamp, message
| order by timestamp desc

Query for setup misconfiguration events (typically the first thing to check after deployment):

traces
| where timestamp > ago(7d)
| where customDimensions.eventId in ('setup.missing', 'setup.clientid.missing', 'setup.tenantid.missing', 'setup.secret.missing')
| project timestamp, customDimensions.eventId, message
| order by timestamp desc

Query for Graph API latency (flag searches taking longer than 5 seconds):

traces
| where timestamp > ago(7d)
| where customDimensions.eventId == 'graph.search.ok'
| extend DurationMs = toint(customDimensions.DurationMs)
| where DurationMs > 5000
| project timestamp, message, DurationMs
| order by DurationMs desc

---

Automated Tests

23 Python-based integration tests in test/, organized across two files:

• test_po_email.py (21 tests) — extension deployment, PO API lifecycle, App Insights telemetry, security verification, code quality checks, and app.json configuration validation
• test_po_browser.py (2 tests) — Playwright browser tests that release POs through the BC web client UI, verifying the email subscriber fires end-to-end (with and without recipients)

Running Tests

cd "PO Email Notification/test"
python -m venv .venv && source .venv/bin/activate
pip install requests python-dotenv msal pytest pytest-json-report pytest-timeout

# BC API + code quality tests
python -m pytest -m bc -v

# Telemetry tests (requires az login)
python -m pytest -m telemetry -v

# Browser tests (requires Playwright + test user credentials)
pip install playwright pyotp && python -m playwright install chromium
python -m pytest -m browser -v

# All tests
python -m pytest -v

# Browser tests with visible browser
HEADED=1 python -m pytest -m browser -v

Environment Variables

Required in the project-root .env:

Variable	Description
BC_TENANT_ID	Azure AD tenant ID
BC_CLIENT_ID	App registration client ID for BC API access
BC_CLIENT_SECRET	Client secret for BC API access
BC_COMPANY_ID	BC company ID (GUID)
BC_ENVIRONMENT	BC environment name (defaults to Sandbox_Test_11062025)
BC_COMPANY_NAME	BC company name for browser deep links (defaults to Bestway Inc.)
TEST_VENDOR_NO	Vendor number for test PO creation (e.g., V00065)
TEST_ITEM_NO	Item number for test PO lines (e.g., ZTEST-ITEM-001)

Additional variables for browser tests:

Variable	Description
BC_TEST_USER_UPN	Entra user principal name for Playwright login
BC_TEST_USER_PASSWORD	Password for the test user
BC_TEST_USER_TOTP_SECRET	Base32 TOTP secret for MFA (if the test user has MFA enabled)

---

Known Limitations

• The PO Arrived subscriber fires on all purchase postings that create a receipt, including direct PO posting without a warehouse flow. This is by design — see the comment block in POEmailSubscribers.codeunit.al.
• If the "Custom Purchase Emails" email scenario is not mapped to an account, enqueue failures are silent to end users and only visible in App Insights.
• The recipient split uses ; as the delimiter. Comma-separated addresses in "Send E-mail To" will be treated as a single (invalid) address.
• The Graph API user search applies $top=50. If more than 50 users match the search filter, only the first 50 are returned.
